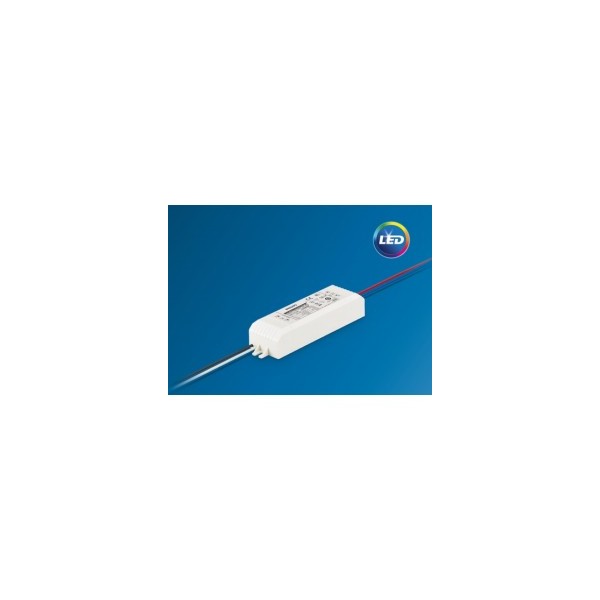

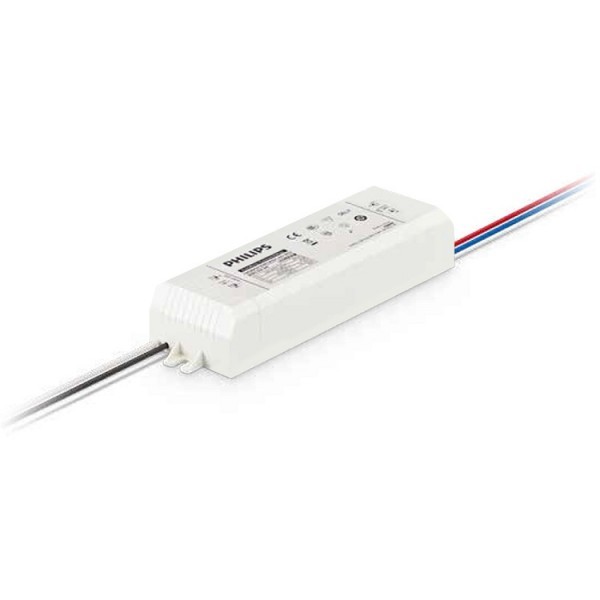

Philips CertaDrive 60W 24V DC 220–240V LED Driver

Applications:

The Philips CertaDrive 60W 24V DC LED driver is designed to power LED lighting systems in indoor applications, such as decorative lighting, linear lighting, panel lighting, and retail displays. With a stable 24V DC output, it ensures reliable and energy-efficient operation of LEDs, minimizing the risk of overvoltage and voltage fluctuations. It is an ideal solution for installations requiring high-quality LED power supply.

Technical Data:

Input:

• Supply voltage: 220–240 Vac

• Frequency: 50–60 Hz

• Power consumption: max. 69.2 W

• Input current: ≤ 0.31 A at full load

• Power factor (PF): ≥ 0.97 at full load

• Efficiency: ≥ 88% at full load

Output:

• Output voltage: 24 V DC

• Output voltage range: 23.0–25.3 V DC

• Output current: 0.1–2.5 A

• Output power: 60 W

• Voltage ripple: < 300 mVp-p

• Line regulation: < 3%

• Load regulation: < 5%

Protections:

• Overload protection

• Short-circuit protection

• Overtemperature protection

• Overvoltage protection

• Automatic recovery after fault removal

Dimensions:

• Length: 151.5 mm

• Width: 52 mm

• Height: 32 mm

Operating Conditions:

• Ambient temperature: -20...+50°C

• Relative humidity: 10...90% (non-condensing)

• Case temperature: max. 85°C

Safety Information:

The CertaDrive 60W/24VDC driver must be installed by qualified personnel according to applicable electrical and safety standards. Use only with compatible 24 VDC LED modules. Protect the device against moisture, overheating, and mechanical damage. Always disconnect mains power before installation or maintenance.

Manufacturer:

• Philips Lighting Poland S.A.

• Address: ul. Kossaka 150, 64-920 Piła, Poland

• Phone: +48 67 352 45 72

• Website: www.signify.com
